محل منبع: | چین |
نام تجاری: | BRITEC |
شماره مدل: | BR-25M 2P |
مقدار حداقل تعداد سفارش: | 100 قطعه/قطعه |
---|---|
جزئیات بسته بندی: | بسته بندی صادراتی |
زمان تحویل: | 15 روز پس از پرداخت ارسال می شود |
شرایط پرداخت: | L/C، D/A، T/T، Western Union |
قابلیت ارائه: | 50000 قطعه/قطعه ماهانه |
سازنده: | Wenzhou Britec Electric Co., Ltd. | نام قطعه: | محافظ برق نوع 1 |
---|---|---|---|
محل مبدا: | ژجیانگ، چین (سرزمین اصلی) | نام تجاری: | BRITEC |
استاندارد ایمنی: | IEC61643-1 | UC: | 275 ولت |
Iimp: | 25 کیلو آمپر | برای نصب روی: | ریل دین 35 میلی متر |
قطب شماره: | 2P | کاربرد: | تک فاز |
برجسته: | Type 1 Surge Protection Device 275V,Single Phase Type1 Surge Protector,25kA T1 Type 1 Surge Protector,Single Phase Type1 Surge Protector,25kA T1 Type 1 Surge Protector |

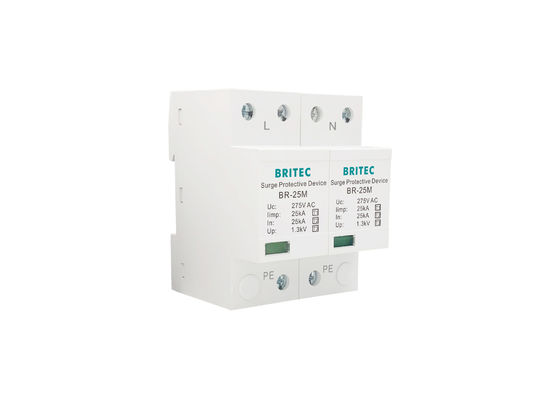

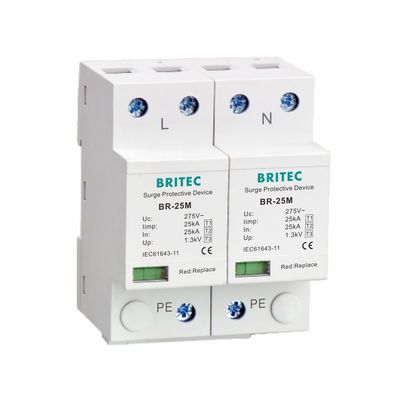

25kA Type 1 Surge Protector Features:
25kA Type 1 Surge Protector Technology characteristic:
BR-25M 2P | |
Max. continuous operating a.c. voltage Uc | 275V |
Voltage protection level Up | ≤1.3kV |
Lightning impulse current (10/350us) Iimp | 25kA |
Nominal discharge current (8/20us) In | 25kA |
Maximum discharge current (8/20us) Imax | 100kA |
Response time tA | ≤25ns |
Test standard | IEC61643-1 |
Operating temperature range Tu | -40℃—80℃ |
Relative humudity(25°C) | ≤95% |
For mounting on | 35mm Din rail |
Enclosure material | Thermoplastic UL94-V0 |
Dimension:
25kA Type 1 Surge Protector Application:
Company Information:
Britec is a factory, specializing in SPDs, located in Yueqing, Zhejiang, China. With advanced technology, our products have been authorized by TUV Rhineland, and CE successfully. We adheres to self R&D, strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, insist on being professional,large-scale brand.
Certification:
Product process:
Shipping:
FAQ:
Q1: How long is the delivery time?
A: Normally 20 working days after received deposit, we have our own factory, the delivery time can be adjust flexible.
Q2: What is the warranty for the surge protection?
A: Two years.
Q3: What is the payment terms?
A: T/T, Paypal, etc.
Q4: How about the products quality?
A: Our products have got CE, CB, TUV certificates.
Q5: Is it OK to print my logo on lightning arrester?
A: Yes. Please inform us formally before our production.
